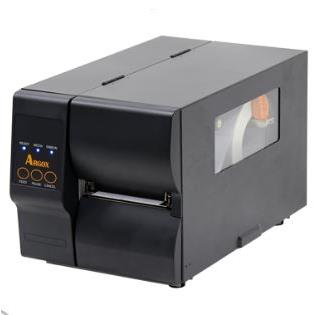

Introduction Replacement printer to Argox existing popular X1000, X1000VL and X1000VL series printer. With new mechnical design, iX4-240 supports a large 8.26 inch outer diameter label roll and up to 450 meter ribbon capacity.Featuring 6 ips print speed, even print with the highest speed, it can still maintain the perfect print quality.The iX4-240 has built-in Ethernet, Dual USB hosts, USB device, RS-232, and it can be expanded with Wi-Fi, GPIO card/Parallel port. Specification
| Printing Method | Direct Thermal & Thermal Transfer | | Printing Resolution | 203 dpi(8 dots/mm) | | Printing Speed | Max. 6 ips | | Printing Length | Max. 100”(2540mm) | | Printing Width | Max. 4.25” (108mm) | | Memory | 32 MB SDRAM, 16MB Flash ROM (USB storage up to 32GB) | | CPU Type | 32 bit RISC microprocessor | | Sensors | Reflective sensor x 1 (Movable) & Transmissive sensor x 1(Movable) | | Operation Interface | LED Indicator x 3, Botton(Feed) x 3 | | Communication Interface | USB device, RS-232, Ethernet, USB host x 2 | | Fonts | Internal character sets standard 5 alpha-numeric fonts from 0.049”H ~ 0.23” H (1.25mm ~ 6.0mm) Internal fonts are expandable up to 24x24 4 direction 0 ~ 270 rotation Soft fonts are downloadable Ability to print any Windows True Type font easily Support scalable font | | Wireless Security | N/A | | 1D Barcodes | UPC-A, UPC-E, JAN/EAN, CODE39, CODE93, CODE128, GS1-128 (UCC/EAN128), CODABAR (NW-7), ITF, Industrial 2of5, MSI, UPCadd-on code, POSTNET, GS1 DataBar Omnidirectional, GS1 DataBar Truncated, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirecional, GS1DataBar Limited, GS1 DataBar Expanded, GS1DataBar Expanded Stacked | | 2D Barcodes | QR Code, PDF417 (includingMicroPDF), DataMatrix (ECC200), GS1 DataMatrix, MaxiCode | | Graphics | PPLA: PCX, BMP, IMG, HEX,GDI PPLB: PCX, BMP, Binary raster, GDI PPLZ: GRF, Hex, GDI | | Emulation | PPLA, PPLB, PPLZ | | Software-label Editing | Windows Driver (Windows Vista/Win7/Win8/Win10), BarTender® from Seaguall Scientific | | Windows Compatibility | N/A | | Software-utility | Printer Tool | | Media Type | Roll-feed, die-cut, continuous, fan-fold, black mark, tags, ticket in thermal paper or plain paper | | Media | Max. width:4.48”(114mm). Min. width: 1” (25.4 mm). Thickness: 0.0025”~0.01” (0.0635mm~0.254mm) 8.26”(210mm)OD on a 3”(76mm) ID core. 7”(177.8mm) OD on a 1.5”(38mm) ID core. | | Ribbon | Max. width:4.4”(112mm). Min. width: 1” (25.4 mm). Length: 450m Wax, Max OD 3.2” (81.3mm). Core size ID 1”(25.4mm). Wax, Wax/Resin, Resin (Ribbon wound ink-side out or ink-side in: auto-detect) | | Drop Resistance | N/A | | Printer Dimensions | W 257 mm x H 263 mm x D 432 mm | | Printer Weight | 13 kgs | | Power Source | Internal Universal Switching Power supply. Input voltage: 100~240V, 50~60Hz | | Battery | N/A | | Operation Environment | Operation Temperature: 40°F~104°F (4°C~40°C), 0% ~ 90% non-condensing, Storage Temperature: -4°F~122°F (-20°C~50°C) | | Real Time Clock | N/A | | Standard Item | N/A | | Optional Items | Guillotine-Full Cutter / Partial Cutter, Rotary Cutter, Peeler, WLAN, GPIO, Parallel module, External media stand | | Agency Listing | CE, CB, cULus, FCC, ICES, Energy Star, RoHS, BSMI | | Attention | *Argox reserves the right to enhance and modify the specification without prior notice. Please check Argox sales representative for most updated specifications. | | | |
